Plastic Jet Ring Random Packing Tower Packing

Plastic Jet Ring Random Packing Tower Packing

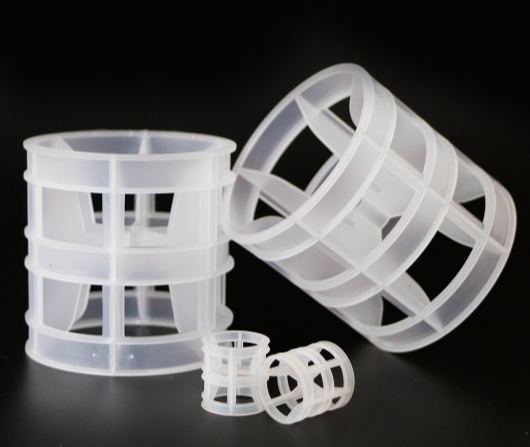

Jet ring products are mainly based on pall ring packing by mold processing improvement. It extends to the rib in the ring, which makes the window form two open cones with opposite directions. Because the cone guides the liquid flow and the air flow to gather and disperse in the ring, it produces strong disturbance.



  • Size :

    50mm,65mm,76mm,90mm
  • Material :

    PP,HDPE,PVC,PPH,CPVC,PTFE,PVDF,PFA
  • Product Details

Advantage of Plastic Jet Ring Random Packing

1.Large flux for distribution.Low fuid resistance.And good corrosion resistance for acid .

2.High mass Transfer  efficiency with low cost.

Product Detailed Pictures





Technical Data

size mm surface area m2/m3 void fraction  bulk number pieces/m3
50 90 94 6450
65 86 92 3030
76 72.3 90 1880
90 68 89 1200



Prodution Process

Package Description



Package Carton Box, Woven Bag,Ton Bag, Wooden case
Container 20GP 40GP 40HQ Normal order Mininum order Sample order
Quantity 22CBM 44CBM 55CBM less than 22CBM 1CBM less than 5pcs
Delivery time 7days 14days 20days 7days 3days stock


Factory Advantage

Professional Mass Transfer Manufacturer
Digital Manufacturing Workshop Product Design and Customize Technical Support



Customer Service

OEM ODM EPC

Annual production :30,000 cubic meters

Production Capacity:28 advanced streamlined production lines

Well-established R&D capabilities

Designer with 15 years' experience

One set of work from project design, purchase,construction to  operation ,to provide customer a comprehensive solution.



Application:

  1. For aerobic or anaerobic biological treatment of wastewater.
  2. Aerobic trickling filters at sewage treatment Plants capacity and efficiency by replacement of existing rock beds and other inefficient media with the Bio-Rings
  3. Anaerobic treatment in a submerged filter can generate methane gas, which is a complementary byproduct in an energy- hungry environment.
  4. Gas phase bio-filter.
